The main technical parameters

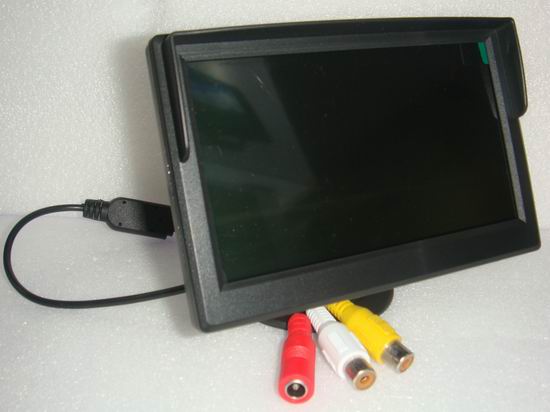

7 inch TFT - LCD desktop/hanging liquid crystal display New production

Interface: RCA video input 1 road, audio input 1 road, power supply standard interface.

Images can be up and down or so

LCD screen aspect ratio: 16:9 ratio can be set to (4:3)

Visual wide Angle: 120 * 90 (H) (V)

The power supply voltage: DC 9 v ~ 35 v

CD/m2 brightness, 300-300

Contrast, 500:1

Pixels (mm), 0.118 (width) x 0.362 (high)

Resolution: (line 800) x 480 (a)

Screen size: 7 inches (mm), 154.96 (H) x 87.17 (V)

Current consumption: 500 ma 5 w power consumption

Operating temperature: - 20 ℃ to + 65 ℃

Storage temperature: 25 ℃ to + 85 ℃

Overall dimensions length * width * height: 173 * 113 * 21 mm

Net weight: 550 g
Aseismic levels: level 5
