Name:5 inch iron monitor TFT-LCD VGA+BNC+RCA PCmonitor industrial/medical/security hd screen
Model:JL-YTK-5008-1080
Product Features:

VGA+BNC video and +AV video. HD monitor. Industrial, medical monitor. Iron. Widely used in industrial, medical monitoring. Good hand feeling, beautiful appearance, convenient operation.





5 inch TFT - LCD desktop iron shell  Color LCD display

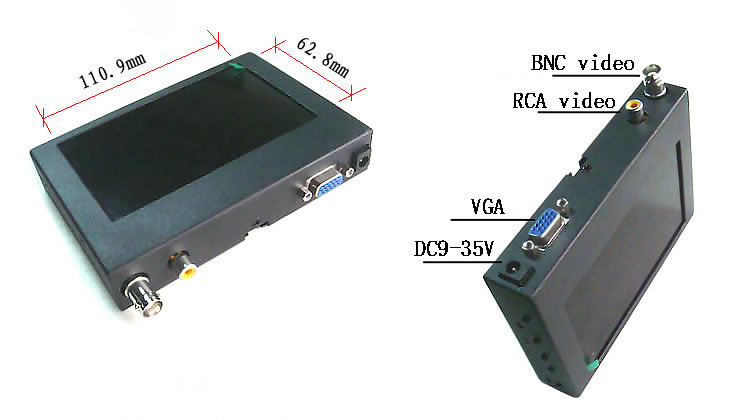

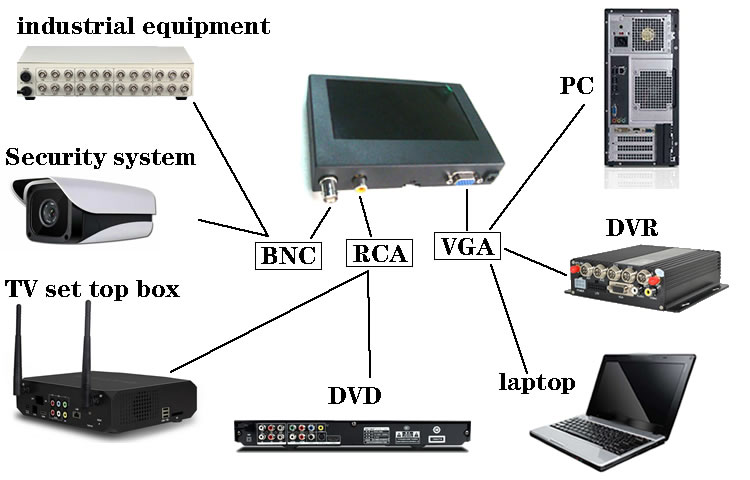

Interface: VGA input connect computer, RCA video input 1 road,
BNC video input 1 road
. Video switch, button, or remote control.

Power DC5.5 * 2.1 mm standard interface. PAL/NTSC system AUTO.

LCD screen, full screen 16:9, the menu can be set up 4:3,
automatic shutdown can be set up.

Screen size (W) 110.88 X62.83 (H) mm,
visual wide Angle: L/R/U/D: 70 ° /70 ° /50° / 70 °

Supply voltage: DC 9 v ~ 35 v ,
brightness:250 ~ 300 CD/㎡ ,
contrast: 350:1

Resolution: 800 x (RGB) X480dots,
VGA support up to 800 * 600,1024 * 768,1280 * 1024

Current consumption: 200 ma,
power consumption :3 w

Operating temperature: - 20 ℃ ~ + 70 ℃, the storage temperature: - 30 ° C to + 80 ° C

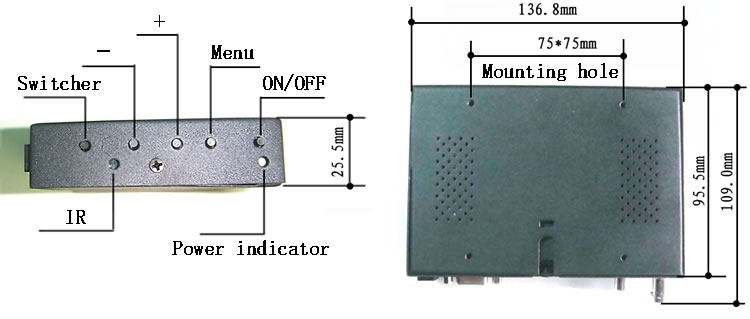

Main body appearance, size length * width * thickness: 136.8 x 95.5 X25.5 mm

Bright screen electricity no video signal.
There is no video signal 10 seconds automatically shut down.

Color box packaging

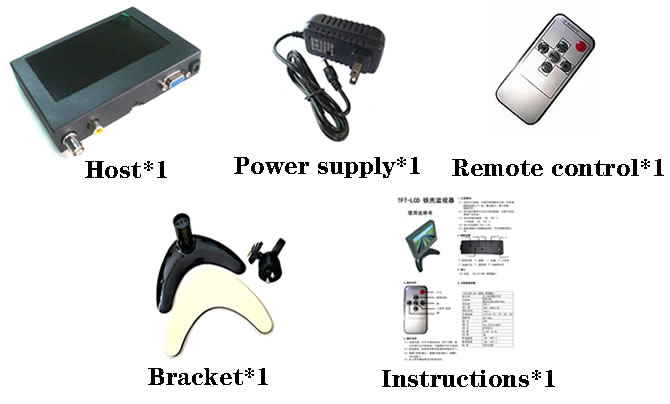

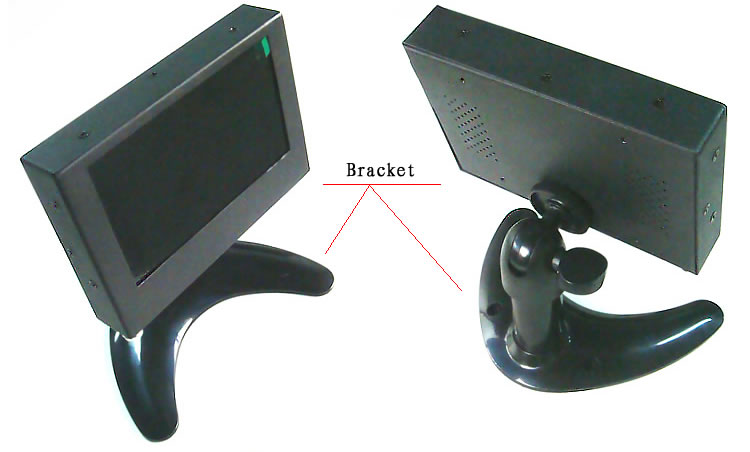

Accessories: 1. Support 1 PCS   2. The power adapter 1 PCS
3.Remote control 1 PCS    4.  instruction 1 PCS
