You are here:Home >> Products >> Car LCD Monitor >> Built in DVR monitor
Name:7-inch DVR,7-inch car monitor,built-in DVR,4 ways video input for reversing,SD card ,maximum support 32G
Model:7012-DVR
Product Features:
  7 inch monitor,built-in DVR,recording 4 channels video signal,1 way audio input,1 SD card  interface support 32G(max),

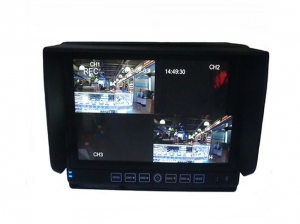

Full image/2 images/4 images adjustable, built-in speaker, with removable visor



7” Monitor with Quad Images& Built-in DVR

Model number: 7012-DVR

Screen Ratio: 16:9

Brightness: 300cd/㎡

Resolution: 800xRGBx480

Compatible system: NTSC & PAL (automatically)

OSD control: Color, Brightness, Contrast, Volume,

Language : English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese

View angle: Hor. L(70) R(70)   Ver. UP(50) DOWN(70)

Image reversion: UP/Down and Left/Right

Power requirement: 12-24V DC

Power consumption: <8W

Storage temperature: -30℃ to 80℃

Working temperature: -20℃ to 70℃

Size: 180mm*121mm*24mm

Weight:
630g

Key color: Black rubber oil, radium carving, through blue light

hockproof level: 4G

DVR image quality: DVR recording 4 channels video signal

VGA resolution:640*480

Recording speed: 60FPS

Storage format: AVI

Memory interface: 1 SD interface

Video storage:
SD high-speed card, maximum support 32G

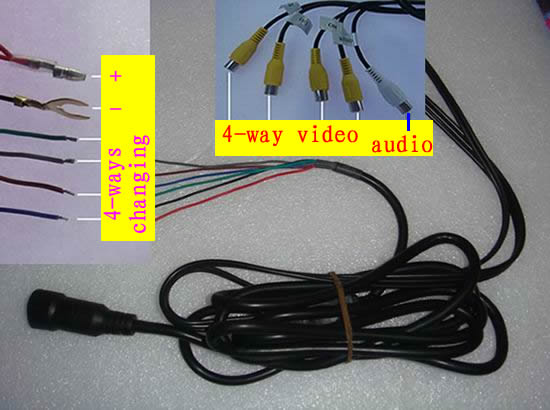

AV Inputs: 4 way video input,1way audio input

Number of Trigger and display:
4 triggers

Optional functions: 4 PIN connector, Butterfly style bracket

Other features:4 channel display for reversing, Full image/2 images/4 images adjustable,

Built-in speaker, With removable visor

Accessories: Remote controller, Power supply cable , User manual, Bracket

Package: 10pcs/box

net weight: 12.7KGS

gross weight: 13.5KGS  M: 62.4*46*24cm
