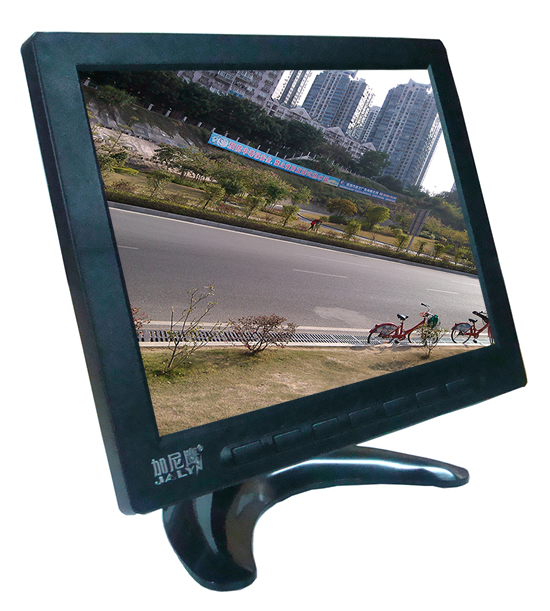

Name:The 8 inch LCD monitor, VGA/AV/BNC plastic case, BNC video, AV Video 2 Road, 1 road, audio, VGA
Model:JL-YJK-8001-1080
Product Features:

8 inch high-definition LCD monitor VGA+AV+BNC video interface, simple and stylish ultra-thin fuselage, folding bracket design, light and portable. High resolution, TFT LCD screen, the image is clear and delicate, colorful. Support BNC input for a professional security monitoring. In support of the 15 pin VGA input, high quality built-in speakers, flip the image support under control, timer switch machine.





The main technical parameters:

1 display: 8 inch 4:3 LCD HD digital screen cross line can be set.

2 the best resolution: 800*600/1024*768

3 contrast: 400:1

4 brightness: 400cd/m2

5 response time: less than =12ms

6 visual angle: 160 degrees 160 degrees horizontal / vertical

7 refresh rate: 60-75HZ

The 8 signal input interface: AV/BNC/VGA

9.1 road VGA is connected with the computer host, AV1/AV2 video, BNC video 1,

The red AV audio (3 channel video state, VGA state without audio)

PAL/NTSC

10 working temperature: -10 degrees Celsius to +50

The 11 menu language: 8

12 power: 12V 1A

13 product dimensions: length * width * thickness 198*162*35mm

14 color box packaging, size: length * width * thickness 330*240*70mm

The 15 wall hanging installation hole size: 75*75mm

Standard:

1 power adapter 12V 1A 1

2 manual 1

3 Desktop Support 1

4.BNC extension cable 1 meters 1
