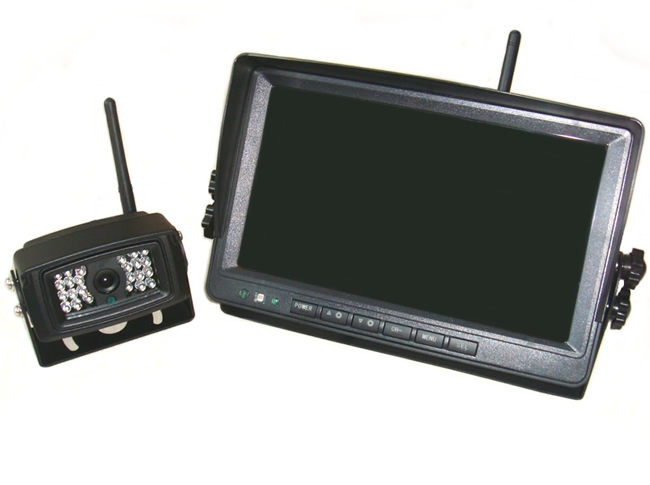

Main technical parameters of display
7-inch TFT LCD desktop wireless reception display,
1-way wireless video, can be added with one channel of wired video input.
The picture can be rotated up and down
LCD screen aspect ratio: 16:9 (4:3 can be set), visual angle: wide angle 120 (V) *90 (H)
Power supply voltage: DC 9v-35v wide voltage, brightness 400, contrast 500:1,
Resolution: 800 (row) x 480 (field) ahd720p 1024 * 600 optional
Screen size: 7 "(mm) 154 (H) × 86.5 (V), current consumption: 500mA power consumption 5W
Operating temperature: 10 ℃ - +50 ℃, storage temperature: 20 ℃ - +65 ℃
Seismic grade: Grade 5
Pal/ntsc system adaptive, and the blue screen will be displayed automatically when there is no video signal
Wireless acceptance distance: within 100 meters of open area.
Main technical parameters of camera:
The camera is divided into forward view picture, rear view mirror without reversing octupline, rear view mirror with reversing octyllabic line
If the camera has a reversing eight character line for the rear view of the car,
please explain it with customer service before ordering or order notes.
Otherwise, the goods will be delivered randomly according to the inventory.
Sensor: CCD 600-700 line, lens 2.8mm/f2.0, angle of view: 120 degrees wide angle
Minimum illumination: 0.3Lux, high sense and low illumination, signal-to-noise ratio: more than 48dB
Video output: wireless / 1-way RCA cable, 1.0vp-p, 75Ohm
Wireless code matching range: ism2400mhz-2483mhz
Working voltage: dc12v-24v, current consumption: 300ma
Wireless transmission distance: within 100 meters in open area.
The distance of exposure is suggested to be within 15 meters, and the night vision distance is within 3 meters.
Operating temperature: - 10 - +40 ° C, storage temperature: - 20-- +60 ° C
Shell material: aluminum magnesium alloy, shock resistant, wear-resistant, high and low temperature resistance
Waterproof grade: IP67 waterproof
