>30 million effective pixels, the picture is clear and stable.
>120 of ultra wide viewing angle, the screen more broad.
> low illumination light sensitive chip, effective nocturnal visual distance is 2 meters.
> waterproof and dustproof structure design, waterproof grade of IP65.
> convenient license plate installation, suitable for cars, buses and trucks.
.jpg)
.jpg)
.jpg)
.jpg)
The main description:
> standard car charger power interface, perfect matching visual reversing function.
>30 million effective pixels, the picture is clear and stable.
>120 of ultra wide viewing angle, the screen more broad.
> low illuminance photosensitive chip, effective nocturnal visual distance is 2 meters.
> waterproof and dustproof structure design, waterproof grade of IP65.
> convenient license plate installation, suitable for cars, buses and trucks.
-------------------------------------------------------

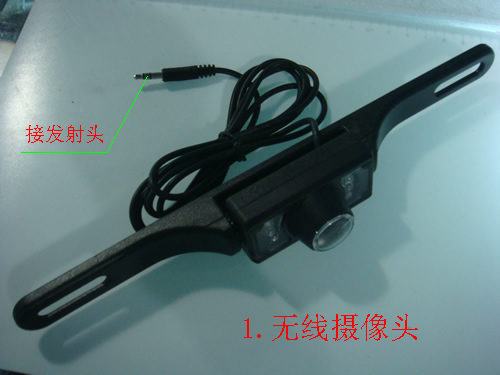

1 camera body, license plate frame

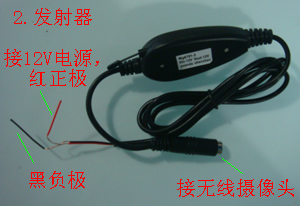

2 wireless transmitter

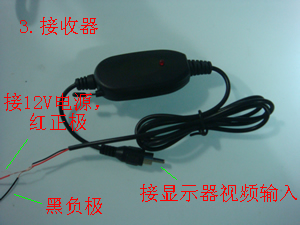

3 wireless receiver
--------------------------------------------------------
The main technical parameters are as follows:
The transmission frequency: ISM 2.4G frequency point * (2370MHZ-2468MHZ)
Modulation mode: FM
Day line: omnidirectional
Transmission distance: 100M
Working temperature: -30 degrees C / -22 ~ +80 ~ +149 Fahrenheit degrees Fahrenheit
Storage temperature: -40 degrees C / -32 ~ +80 ~ +176 Fahrenheit degrees Fahrenheit
Humidity: 85%RH
Operating environment: Vehicle
The photosensitive chip: CMOS PC1030
Pixel: 628 x 582
Visual angle: 120 degrees 170 degrees can choose
Minimum illumination: 2.0Lu/F1.2
Transmission power: 80mW
Power source: DC 12V 180mA &230mA (IR LED on)
Night vision distance: 5m
Waterproof grade: IP67
Fixed: plate screw
Size: 260mm*42mm*31mm
--------------------------------------------------------
A body machine: Black
Methods: omnidirectional antenna
Power supply voltage: DC 12V
Video: 2.5mm diameter
Frequency range: 2370MHz~2468HHz
System type: PAL/NTSC
Receiving sensitivity: less than -85dBm
Storage temperature: -20 degrees /-4 degrees F ~ ~ +60 degrees +140 degrees Fahrenheit
Working temperature: -10 degrees /-15 degrees F ~ ~ +50 degrees +122 degrees Fahrenheit
Size: 105mm*50mm*22mm
----------------------------------------------------------
Packing size: 263*82*38mm
Packing: 200g
