The main performance description:

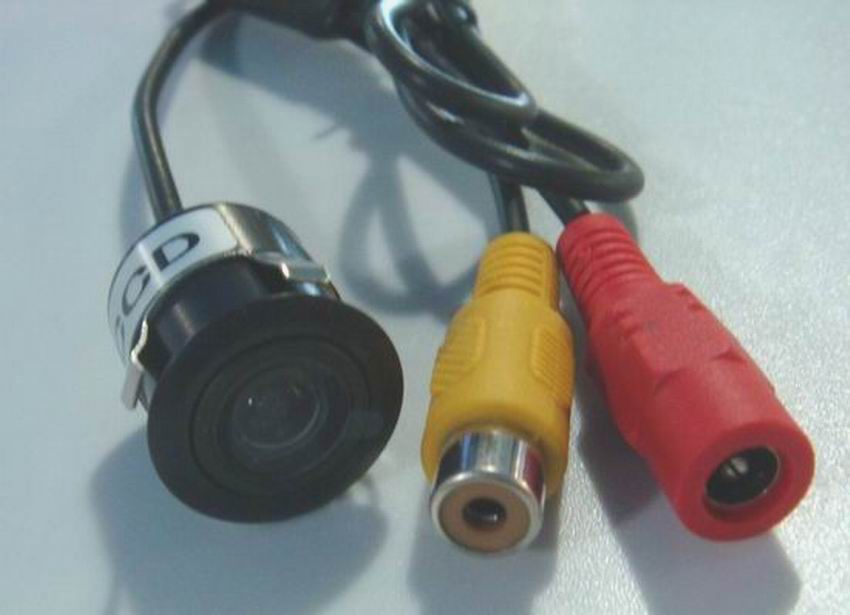

Embedded hd after reversing camera, 18.5 * 22 MM, ultra small size, 18.5 MM hole.
Image sensor: Korea PC1030
Mirror: F = 1.8 mm

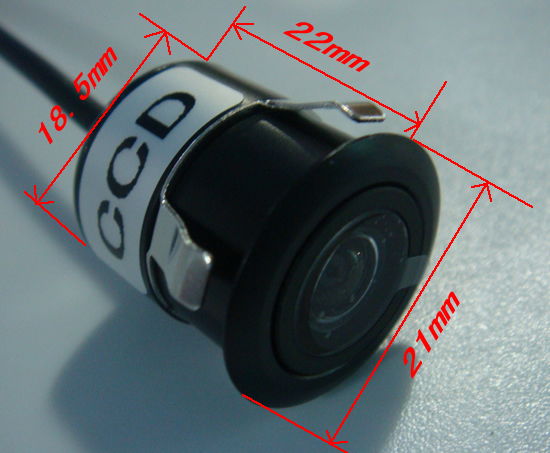

Size: length: 22 mm, diameter 18.5 mm
Perspective: 170 degrees
Level of clarity: 420 TV lines
Draw a line belt scale: warning range scale
Resolution: 656 x 492 (NTSC)
Signal to noise ratio: > 48 db (AOC) on
30 FPS post rate:
Minimum illumination: 0.5 Lux
Operating voltage: 12 v DC
Output line: power supply, signal lines, ground wire
Video output: composite video line (75)
Operating temperature: - 20 ℃ ~ + 80 ℃, RH95 %
Storage temperature: - 40 ℃ ~ + 100 ℃, Rh95 %
Waterproof index: Ip66 waterproof design / 68, the factory after strict immersion test.
Note: prepared waterproof, shock, resistance to high temperature and high humidity
Other: automatic white balance
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --

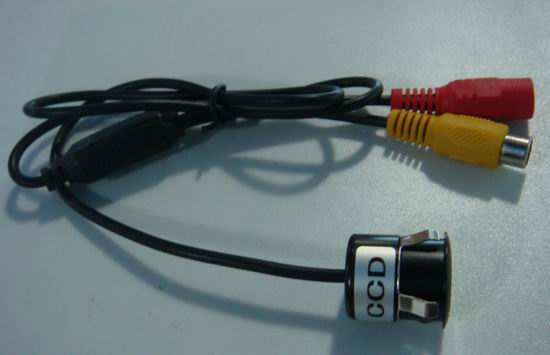

"Accessories" the 6 meters of video thread, a 1.5 M power cord + bit
Can be displayed on the display scale, see behind the object from the rear of the about distance.
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
【license plate lamp】Installed on the rear of the handle and the optimal installation location
