Explanation of parameters:
Type: General (with required to receive customized)
The photosensitive element: the original chips
The lens size: Standard 3.6MM, optional 6MM
Signal format: PAL
Color: color
Waterproof grade: IP66
Power supply: DC12V+-1
Signal to noise ratio: >52DB
Maximum power: 12W
Minimum illumination: LUUX (IR LED on)

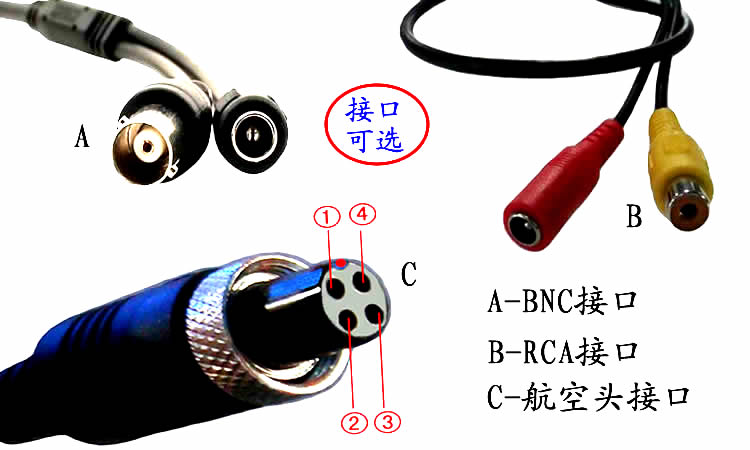

Video output: 1.0vp-p, 75
Gain control: automatic
Backlight compensation: automatic
Exposure mode: electronic exposure
Synchronization: synchronization
Working temperature: -15 degrees to 80 degrees
Lens selection reference:
The irradiation angle of shot size recommended irradiation distance
4mm 69.9 degree of 0 - 6 meters
6mm 50 degree of 6 - 10 meters
8mm 38.5 degree of 10 - 20 meters
12mm 26.2 degree of 20 - 35 meters
16mm 26.2 degree of 30 - 50 meters
