Main performance description:

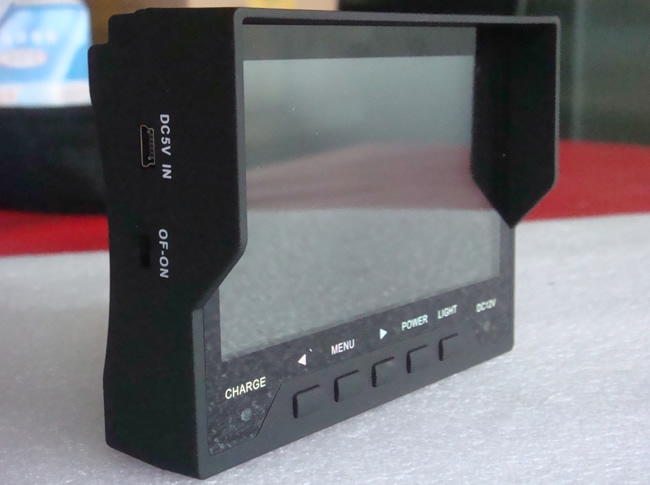

MODEL:JL-YJK-43091. 4.3 inch New TFT LCD ahd + CVBS + TVI + CVI
2. Sunshade appearance, black paint
3. It adopts high brightness and high contrast,
and can be used normally under strong outdoor light
4. With rechargeable high capacity battery, safe and convenient
5.12v power output interface
Main technical parameters:
1. LCD monitor 4.3 "with battery
2. Display scale: 16:9
3. Resolution: 480 * 272
4. Brightness: 250cd / m2
5. Contrast: 350:1
6. Corresponding time: 25ms
7. Color: 16.7M
8. Visual angle: up, down, left and right / 40 / 60 / 60 / 60
9. Video format: PAL / NTSC automatic adaptation
10. Video input: 1.0vp-p750hm
11. Audio input: 0.7vp-p
12. Menu: Chinese and English
13. Power input: 110-220V -- 5V / 1000mA
14. Power output: DC 12V 500mA
15. Battery: DC 3.7V 2600mAH
16. Working temperature: 5 -- + 50 ℃
17. Storage temperature: - 20-50 ℃
18. Relative humidity 5-95% RH
19. Power: 1W
20. Total weight 375g
21. Opening dimension: 111 * 83 * 40MM (L * h * t)
22. Package size: length * width * thickness 210 * 180 * 63mm
