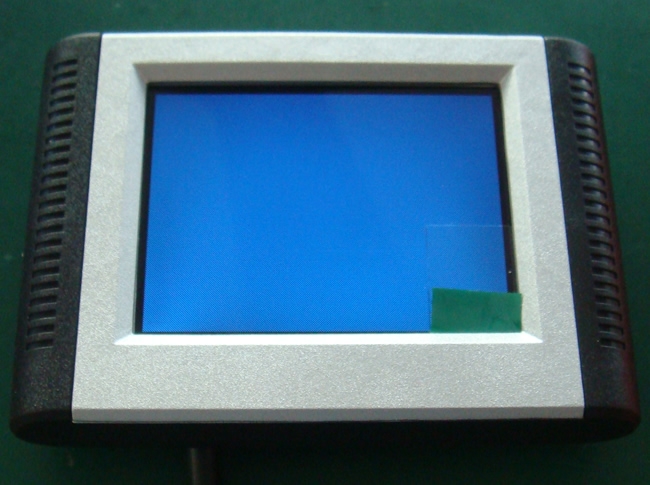

Product Features： White shell. One or two video input, interface optional.
It is mainly used for industrial instruments, debugging cameras,
Real time display of household vehicle monitoring.
Main technical parameters
Model: 2504
1.2.5 inch LCD monitor TFT-LCD
Interface: one way video (RCA interface).
One way power supply standard interface.
2. Video format: NTSC / PAL automatic switching mode
3. Digital screen 4:3 display
4. Resolution: 480 × 234
5. Point distance: 0.0785-0.1575 (mm)
6. Average brightness: 250 CD / M
7. Contrast: 200:1
8. Response time: 25 ms
9. Input voltage: DC 12V
10. Power consumption: ≤ 1.5W
11. Appearance specification: 82 × 60 × 20 (mm)
12. Net weight: 100g
13. Total weight: 175g
14. Signal input: one channel video input (without audio)
15. Power supply protection: with input voltage polarity protection
16. Seismic grade: 5
Package: color box (size: 155 × 136 × 50mm)
