Main technical parameters
Model:JL-YJC-1011-1092

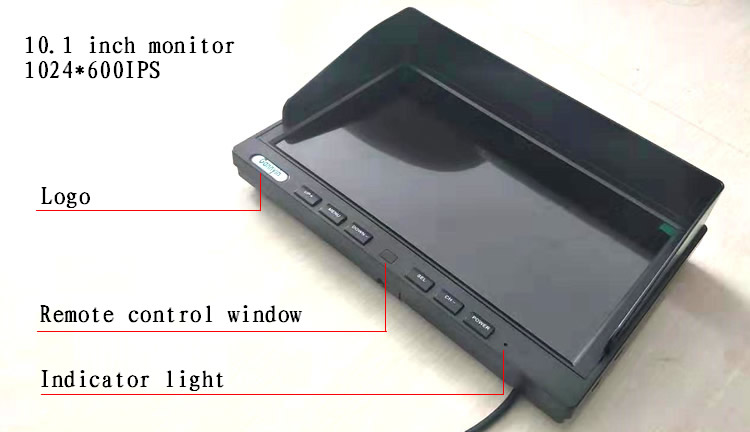

10.1-inch TFT-LCD high resolution
1. Resolution: 1024 * RGB * 600 IPS, 16:9 full screen display (4:3 can be set)
2. Average brightness: 500-650cd / m2
3. M12-4PIN / RCA video cable is optional
4. The red and black bare wires of power supply are connected, and the blue wire is preferred
5. PAL / NTSC auto
6. Input voltage: dc9v-32v
7. Multi language choice
8. The main menu of OSD can be adjusted to flip up, down, left and right pictures
9. Optional built-in horn

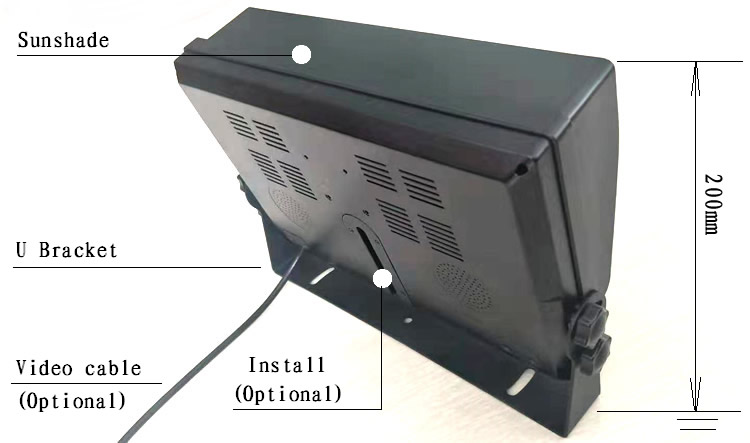

10. U-shaped support, other supports are optional
11. Panel key and remote control.
12. Viewing angle range: ALL
