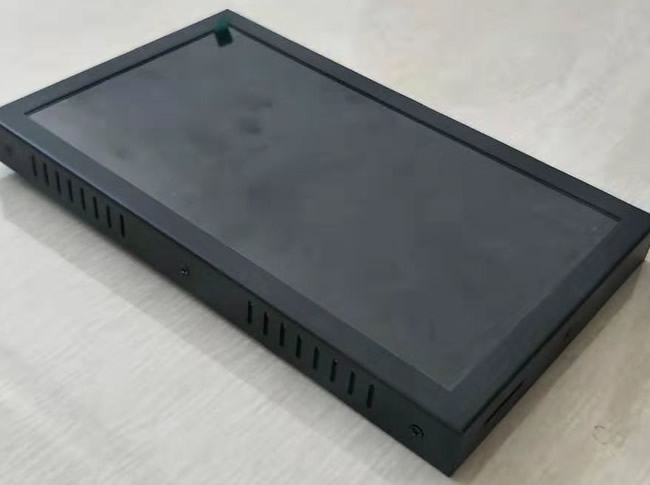

10.1"2CH/4CH/6CH/8CH Optional.AHD Monitor Built-in DVR
Resolution:1024*R.G.B*600
Back Light Luminance：LED, 500cd/㎡
View angle:L/R:180°,UP:180°,down:180° degree
Four-channel AHD video input,
adjustable display of image1/ image2/ image3/ image4,
Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Twelve segmentation modes, cut into two three or four pictures to display H-type,
each picture can be presented separately
Four channels independently adjust the image flip in left,
right, upper and lower directions
3ways Trig Trigger priority:V2>>V3>V4
Reference point and time control for reverse gear setting
Video storage:SD high-speed card, maximum support256G
Format:H.264
Supports four channels of replaying back videos simultaneously,
which support pause, fast forward, fast backward and other operations
With memory function in case of power-down.
OSD menu,remote control
System:PAL&NTSC auto-switching
Power supply:DC 9V-36Vinput，12V output
RCA/ 4pin connector (Optional)
ppearance color: black rubber paint
Butterfly bracket/fan bracket/Suction Cup holder (optional)
Headrest frame (optional 906AHD/1016AHD)
RCA/ 4pin connector (Optional)
