The main technical parameters

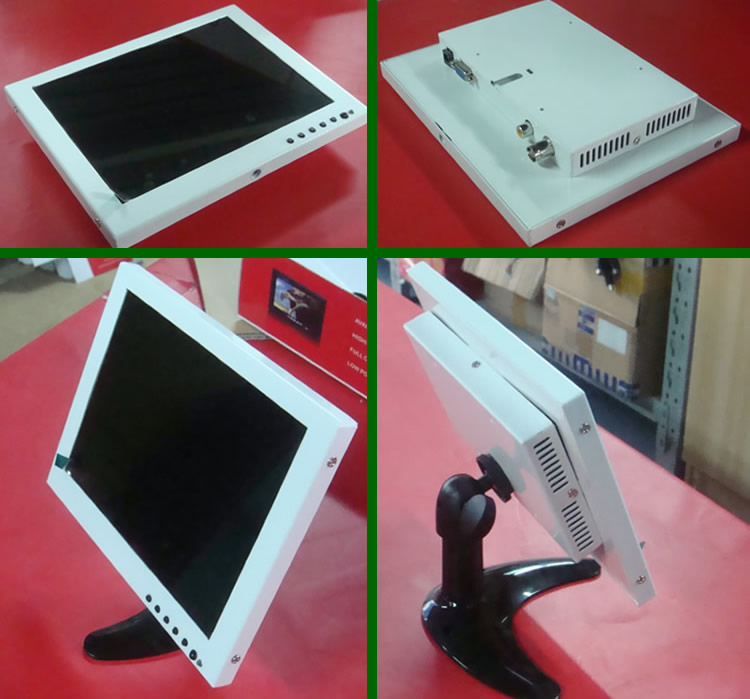

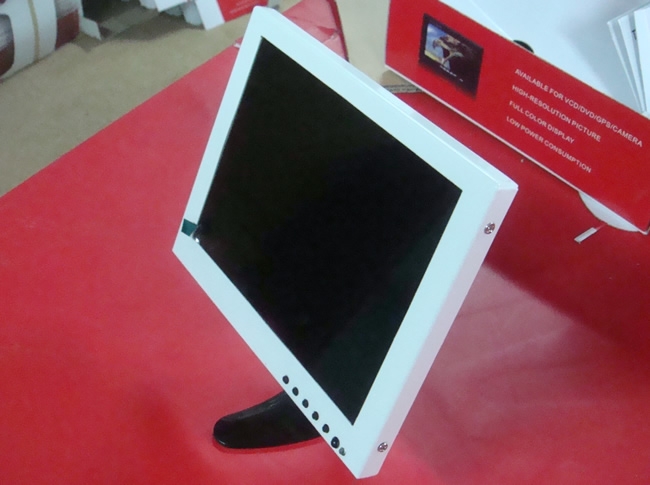

1. Product name 8 inch LCD monitor MODEL:JL-YTK-8001-1082
2. The display area (H) x 121.92 (V) 162.56 mm
3. Display ratio 4:3
4. 1024 * 768 resolution, adapt to 800 * 600 1024 * 768, 1280 * 960
5. Brightness 250 CD / ㎡
6. Contrast, 400:1
7. 8 ms response time
8 dot matrix (H) x 0.1764 (V) 0.0588 mm
9. Color is 16.7 M
10. Viewing Angle (up/down/left/right) : (50/70/70/70)
11. PAL/NTSC automatic switching video formats
12. 1.0 the vp - p75ohm video signal
13. The menu OSD digital menu/multiple languages such as English
14. BNC video input signal port 1 road,
VGA video input 1 road, AV video input 1 road
15. DC8V ~ 32 v wide input voltage / 1 ~ 2.0 A
16. The work environment 0 to 60 degrees Celsius
17. Storage environment - 20 ~ 60 degrees Celsius
18. Environmental relative humidity 5 ~ 95% RH
19. The power consumption of 15 w
20. The body weight of 635 grams
21. The packing weight 1170 grams, logistics weight: 2 kg
22. Look long thick high * 195 * 195 * (13 + 19.5) mm
