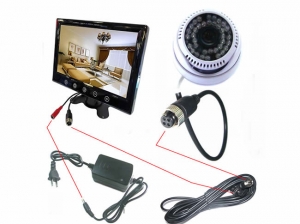

9 inches LCD monitor display the main technical parameters:
1.9 inch TFT LCD monitor hd highlighted
2. Interface: video BNC male head all the way, the DC power supply 1 road (5.5 * 2.1 mm)
Two-way video interface, switch is used
3. The display scale: 16:9, display area: long * 199.30 * 112.10 mm wide
4. The screen Angle: 120 ° (V) * 90 ° (H)
5. The screen resolution: 800 * 480 (RGB)
6. Use voltage: DC9V ~ 35 v wide voltage
7. Operating temperature: - 20 ℃, + 65 ℃
8. Storage temperature: 25 ℃, + 85 ℃
9 aseismic levels: level 5
10. PAL/NTSC system adaptive
11. The display overall dimensions: length * width * thickness 230 * 155 * 289 mm (MAX)
