camera
1, high-definition format signal input (BNC/HDMI/YPBPR/VGA/Audio)
2, PAL/NTSC video automatic identification.
Below 3, 1920 * 1080 resolution, the resolution compatible, automatically adjust to the best state.
4, use external power adapter power supply, the product is more safe and reliable.
5, support the machine button and infrared remote control.
6, in both Chinese and English bilingual menu selection, can also be equipped with multiple languages.
7, product set aside a variety of installation (hanging wall, hanging wall, etc.), TV wall installation.
8, the rugged metal casing, anti-static, magnetic field, strong interference.
9, adopt new industrial LCD screen with high contrast, high brightness, longer duration work
10, using the latest 3 d digital comb filter and 3 d digital image noise reduction technology, image is clear
Norm, wide Angle;
11, built-in McGonagall meter, power supply, low energy consumption, the service life of the LCD screen can reach more than 50000 hours
The main technical parameters

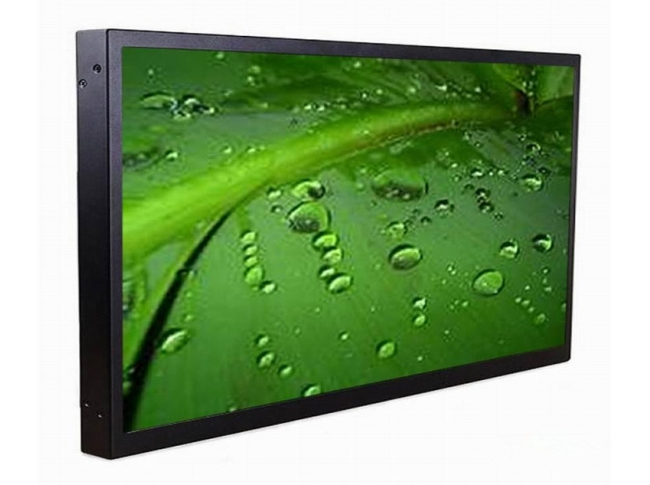

Panel type
46 inch TFT - LCD
The physical resolution of 1920 * 1080 RGB
Pixel pitch 0.294 mm x 0.294 mm
16:9 screen ratio
8 ms response time
500 CD/m2 brightness
Contrast, 1500:1
The visual Angle of 85 ° 85 ° / / 85 ° 85 °
The chromaticity of 16.2 M
Stereo system BNC signal terminals
Audio interface
High-definition input
YPbPR, 1080 (1920 * 1080) backward compatibility
VGA signal terminal
Power consumption of 48 w
The AC Input voltage/frequency of 90 ~ 264 v, 50 to 60 hz DC Output 12 v 4 a
Smart cooling system
Intelligent temperature control fan, fan self-checking function, saving energy consumption, reduce noise and decrease the temperature
of the whole machine, improve the machine reliability
Automatic backlight system
Adaptive adjust backlight brightness with the environment, save energy, reduce fever, enhance the reliability of LCD; Effectively solve
eyestrain, facilitate long-term monitoring
System control
Both English and Chinese language switch, contrast, brightness, clarity, color saturation, hue, signal switching, source browsing,
color temperature regulation, reproduction rate switch, running state display
Using the environment 0 ℃ to 50 ℃
Storage environment - 20 ℃ ~ 60 ℃
PAL, NTSC3.58, NTSC4.43 video formats
Exterior size 416 * 425 * 50 mm (width x height (deep)
Packaging size 480 * 445 * 205 mm
The installation hole 75 mm x 75 mm (width x height) installation The capes, base (support) (optional)
